Rotary Product Solutions

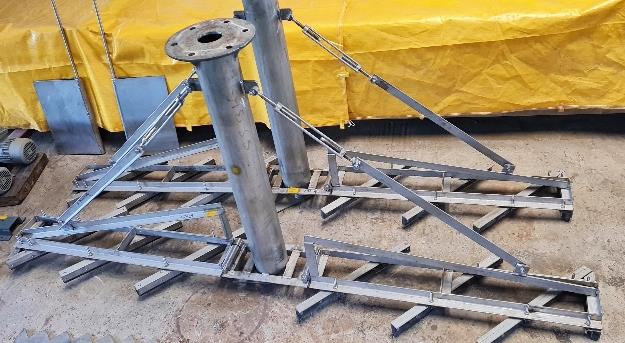

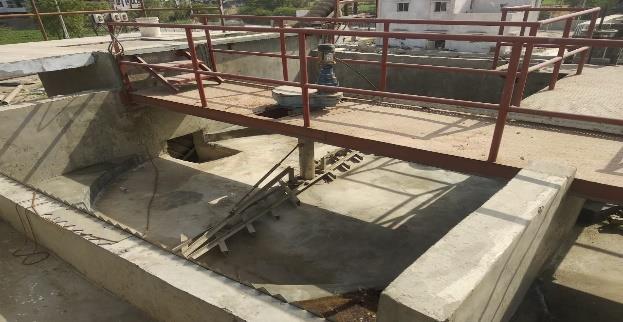

Gyro-G Grit Separator Mechanisms
These are conventional grit separator mechanisms using Radial horizontal flow in a square tank with slow scrappers to To remove settled grit from the tank using Screw Classifiers.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
For Scrappers – SS 304/SS316 |
|
|
For Screw – SS 316 |
|
|
For Drive head – CI FG 260 |
|
Rubber Squeezies |
EPDM 50 x 20 mm Size |
|
Sizes |
1 x 1 Mtr. To 15 x 15 Mtr. Tank size mechanisms available. |
|
Method of Activation |
By 0.5 HP Drive Head Mechanism at 5 RPH Speed. |
|
Power Requirement |
2 HP total power for each GSM unit is the lowest in the market. |

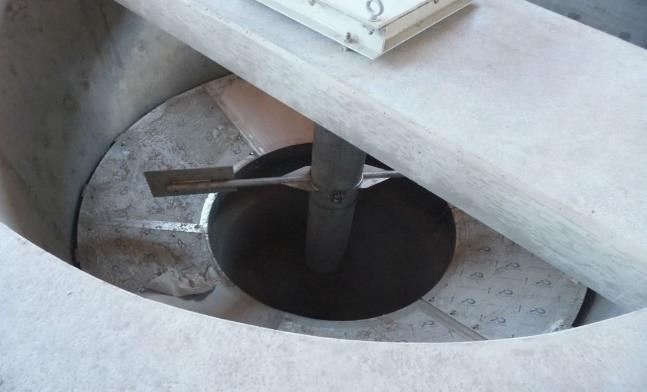

Gyro-V Vortex Grit Separator Mechanisms
These are forced vortex type grit separator mechanism With Vortex Agitator / Stirrer, Separation Plate and Turbo Pump To lift grit into Screw Compactor Cum Classifiers. Turbo Pump Is Swiss Made with Nichrome Coated Casings.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
For Stirrers / Plate – SS 304/SS316 |
|
|
For Screw – SS 316 |
|
|
For Drive head – CI FG 260 |
|
Pump |
Remote Mounted Turbo Grit Pump ( Swiss Made ) Egger Make3 |
|
Sizes |
1000 mm Bowl Size to 5600 mm Bowl Size |
|
Method of Activation |
By 0.5 HP Drive Head Mechanism at 10 RPM Speed. |
|
Power Requirement |
t 5 HP Total Power Requirement |

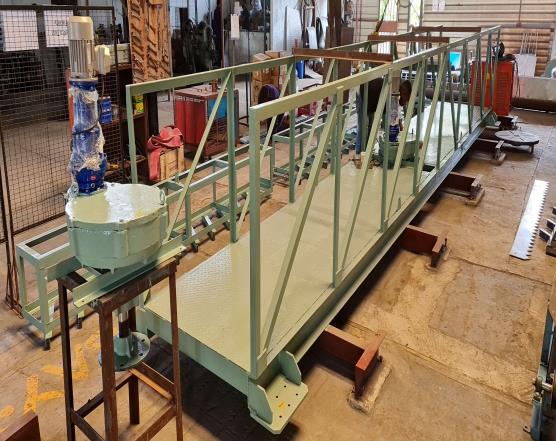

Gravity Sludge Thickener Mechanism
These are Centrally Fixed Scrapper arm with Blades Drive or Peripherally driven rotating bridge System. As Water flows outward from the centre, the suspended solids Sinks to cylindrical vessel, where they are scrapped. Rotating scrapper arms and removed as the thickened Sludge product.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
SS 304 / SS316 & MSEP |
|
|
For Scrapper arms – MS–GI |
|
|
For Scrapper Blades – MS–GI |
|
|
For Drive head – CI FG 260 |
|
Sizes |
3mX3m to 30mX30m Tank Sizes Mechanisms. |
|
Method of Activation |
0.5/1HP Central Fixed Bridge Drive Head Mechanism or
Peripherally driven wheel carriage drive head system at 5 RPH Speed. |

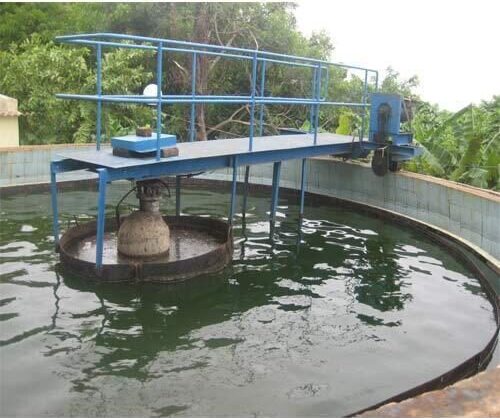

Clarifier
These are settling tanks built with mechanical means for continuous removal of solids being deposited by sedimentation. A clarifier is generally used to remove solid particulates or suspended solids from liquid for clarification and (or) thickening
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
SS 304 / SS316 & MSEP |
|
|
For Scrapper arms – MS–GI |
|
|
For Scrapper Blades – MS–GI |
|
|
For Drive head – CI FG 260 |
|
Sizes |
3mX3m to 30mX30m Tank Sizes Mechanisms. |
|
Method of Activation |
0.5/1HP Central Fixed Bridge Drive Head Mechanism or
Peripherally driven wheel carriage drive head system at 5 RPH Speed. |
Don't Waste Clean Water, Just Save It
Parchure Engineers Private Limited, is Certified Engineering Company manufacturing Quality & Innovation Driven Process Equipment for the Water and Waste Water Management Sector since 2011.
Agitator
These gates are to allow flow in one direction only. For Instance when flow is going out in low tide and to be Stopped during high tide.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
SS304 |
|
|
All wetted Parts – SS 316 |
|
|
For Drive head – CI FG 260 |
|
|
Bearing Housing – CI IS 210 FG |
|
Sizes |
As Per Requirement |
|
Method of Activation |
Flange Mounted Motor with Gear box. |

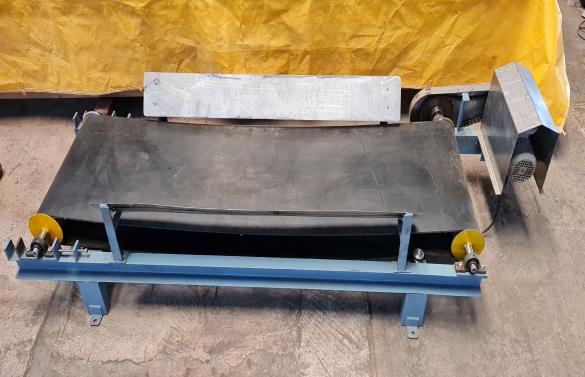

Belt Conveyor
Parchure Make Convo Belt conveyor arrangement
In synchronisation with Screen for removing waste.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
Structural frame – MSEP |
|
|
Rubber Belt – EPDM |
|
|
Chain arrangement Carbon steel |
|
Sizes |
Belt Size 600 mm Width X 8 mm Thick Length is Customized. |
|
Method of Activation |
0.5 HP Motor with Gear Box output speed 30 RPM. |
